WESTTUNE 16wells Portable Mini Gradient Thermal Cycler DNA PCR test Instrument Price for Molecular Biology

Name: WESTTUNE 16wells Portable Mini Gradient Thermal Cycler DNA PCR test Instrument Price for Molecular Biology
SKU: 37
Price: 1100.00 USD
Availability: InStock

$1,100.00

Here is a polished, conversion-ready e-commerce product description tailored for the WESTTUNE WT-16 Mini PCR Thermal Cycler. Hangzhou West Tune Trading Co., Limited WESTTUNE WT-16 16-Well Portable Mini PCR Thermal Cycler Overview The WESTTUNE WT-16 is a compact, high-performance personal thermal cycler engineered for DNA amplification, genetic research, and rapid molecular diagnostics. Built to deliver reliable Peltier-based heating and cooling in a portable footprint, it brings standard laboratory PCR capabilities to field stations, small diagnostic setups, and educational environments. Equipped with an intuitive 5-inch color touchscreen, the WT-16 enables real-time protocol management without requiring an external computer. Key Features…

Category: Lab Tools

Description
Reviews (0)

Description

Here is a polished, conversion-ready e-commerce product description tailored for the WESTTUNE WT-16 Mini PCR Thermal Cycler.

Hangzhou West Tune Trading Co., Limited

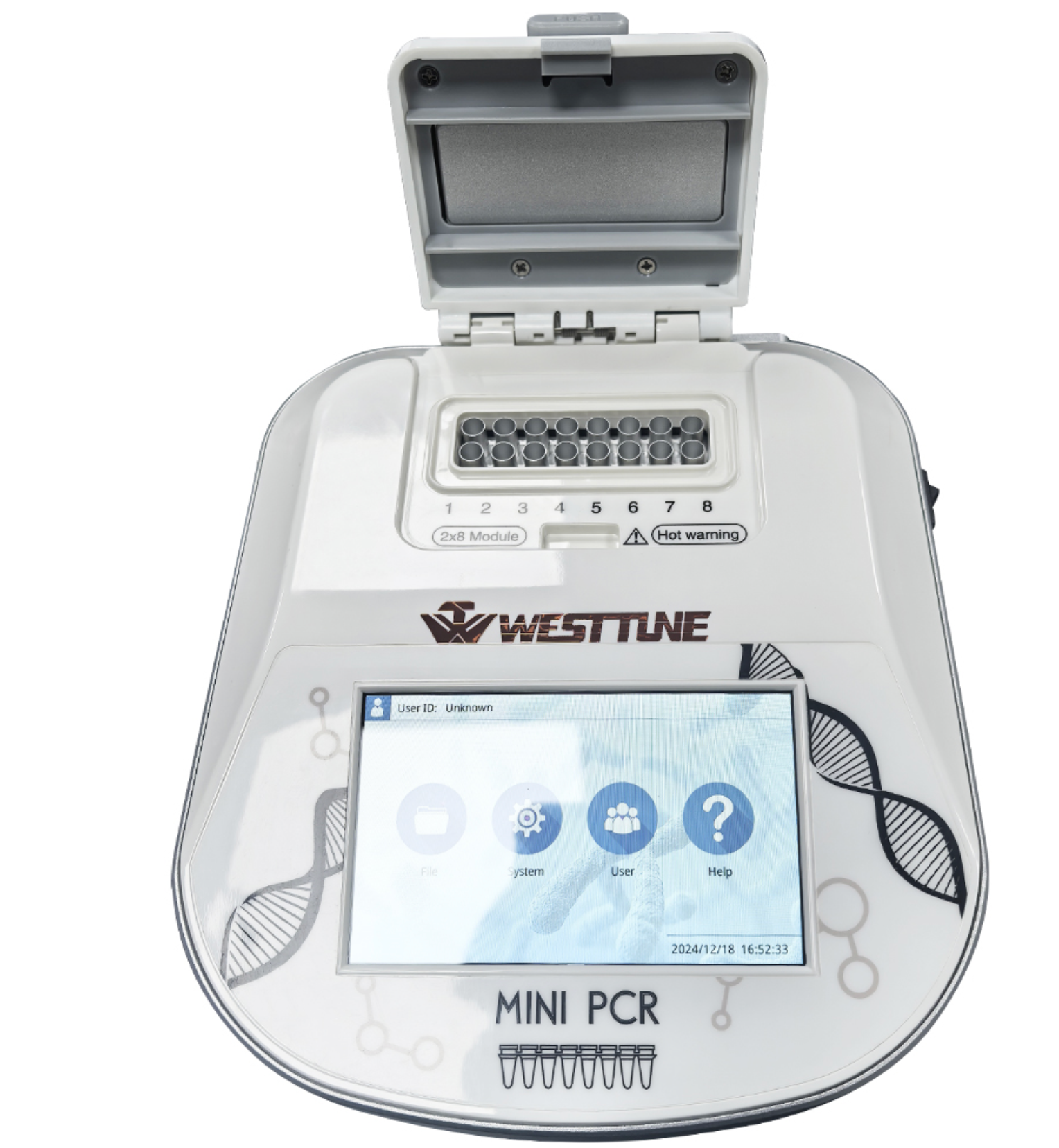

WESTTUNE WT-16 16-Well Portable Mini PCR Thermal Cycler

Overview

The WESTTUNE WT-16 is a compact, high-performance personal thermal cycler engineered for DNA amplification, genetic research, and rapid molecular diagnostics. Built to deliver reliable Peltier-based heating and cooling in a portable footprint, it brings standard laboratory PCR capabilities to field stations, small diagnostic setups, and educational environments. Equipped with an intuitive 5-inch color touchscreen, the WT-16 enables real-time protocol management without requiring an external computer.

Key Features

16-Well Sample Capacity: Accommodates 16 × 0.2 mL PCR tubes or two standard 8-tube strips for flexible daily throughput.

Hangzhou West Tune Trading Co., Limited
Rapid Thermal Dynamics: Delivers heating rates up to 5°C/sec and cooling rates up to 4°C/sec to significantly shorten cycle run times.

Hangzhou West Tune Trading Co., Limited
Integrated Touchscreen Control: Features a 5-inch TFT color display (800×480 resolution) for easy programming, visual temperature curve tracking, and status monitoring.
Adjustable Heated Lid: Independent heated cover (30°C to 110°C) prevents sample evaporation and tube condensation, eliminating the need for oil overlays.

Hangzhou West Tune Trading Co., Limited
Dual Control Modes: Switch between Block Temperature Control and Tube Simulation Mode to match specific reagent kinetics.
Expanded Internal Memory: Stores over 100 customizable PCR protocols directly on the device with power-failure recovery and 16°C hold options.

Technical Specifications

Parameter	Specification
Model	WESTTUNE WT-16
Sample Capacity	16 × 0.2 mL tubes (compatible with 8-strip tubes)
Temperature Range	4.0°C – 99.9°C
Heating / Cooling Rate	Max 5.0°C/s (Heating) / Max 4.0°C/s (Cooling)
Temperature Accuracy / Uniformity	±0.20°C / ±0.25°C
Heated Lid Range	30°C – 110°C
Display	5-inch TFT LCD Touchscreen (800 × 480 pixels)
Communication Port	USB 2.0
Dimensions & Weight	200 mm × 230 mm × 85 mm (W×D×H); lightweight portable body
Power Input	12V DC, 9.99A (100–240V AC universal adapter included)

Ideal Applications

Molecular Biology & Genomics: Routine target DNA amplification, gene expression screening, and gel electrophoresis prep.
Point-of-Care & Field Diagnostics: Mobile pathogen screening, environmental DNA (eDNA) sampling, and veterinary testing.
Life Science Education: Teaching core PCR principles, primer annealing, and nucleic acid replication in university or high school labs.
