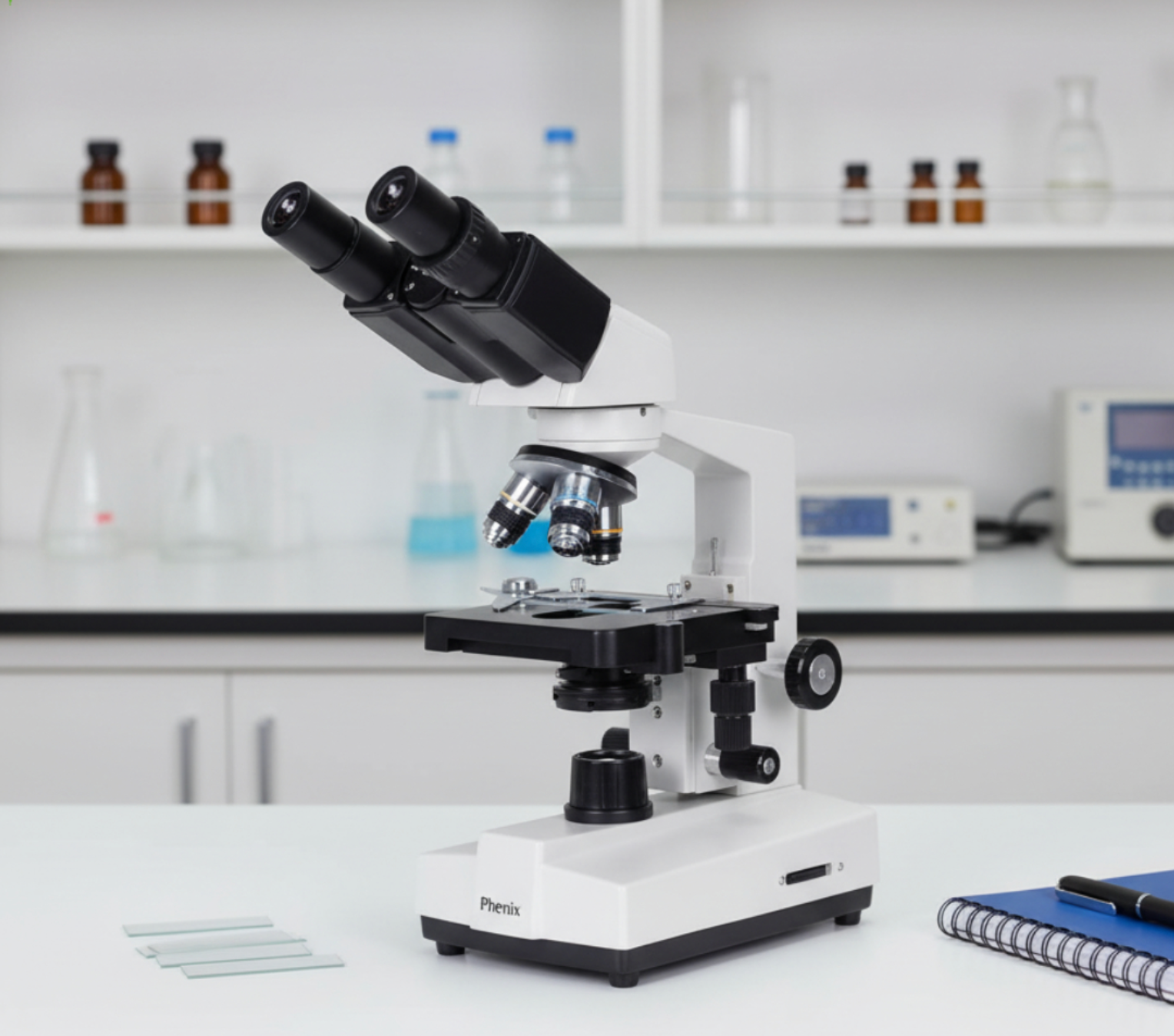

Microscope XSP-36T-1600X in Medical Research and Education

Description

Core Specifications & Optical Setup

• Magnification Range: 40X to 1600X achieved via interchangeable eyepieces (typically WF10X and WF16X) paired with achromatic objectives (4X, 10X, 40X, and 100X oil immersion).

• Illumination & Condenser: Built-in LED or halogen variable illumination system with an Abbe Condenser (N.A. 1.25) and iris diaphragm for optimal contrast tuning.

• Focusing Mechanics: Coaxial or dual-layer coarse and fine focusing knobs for precise depth control at higher magnifications.

• Stage: Double-layer mechanical stage with X-Y slide positioning for smooth specimen maneuvering.

Role in Medical Education

In medical schools, biology programs, and technical training labs, the XSP-36T serves as a primary teaching instrument due to its balance of simplicity and professional features:

1. Histology & Cytology Instruction: Perfect for teaching students how to identify tissue structures, cell membranes, epithelial layers, and organelle groupings.

2. Microbiology Fundamentals: With the 100X oil immersion objective (yielding 1000X–1600X total magnification), students learn slide preparation, Gram staining, and bacterial morphology identification (cocci, bacilli, spirilla).

3. Hematology Training: Enables clear visualization of blood smears, including red blood cell (RBC) counts, white blood cell (WBC) differential counting, and platelet observation.

Role in Research & Routine Laboratory Diagnostics

While high-end advanced research often utilizes infinity-corrected trinocular fluorescence or electron systems, the XSP-36T fills vital baseline functions in research and clinical settings:

• Routine Sample Screening: Serves as a reliable workhorse for preliminary slide inspection before passing samples to specialized imaging units.

• Parasitology & Urinalysis: Widely used in field clinics and entry-level research labs to detect intestinal parasites, ova, protozoa, sediment crystals, and fungal cultures.

• Cell Culture Quality Control: Quick, routine checking of slide-mounted samples and tissue smears for contamination or general morphology checks.

Key Advantage: The XSP-36T provides true 1000X+ optical resolution required for viewing cellular and bacterial structures without the high acquisition or maintenance costs associated with complex digital research rigs.
